At Lukos Engineering, our approach to tuning has always been based on live data, proper diagnostics, and keeping the correct factory safety strategies in place. A calibration is only one part of the complete system. The ECU, turbochargers, wastegates, actuators, sensors, boost control strategy, and mechanical hardware all need to work together correctly.

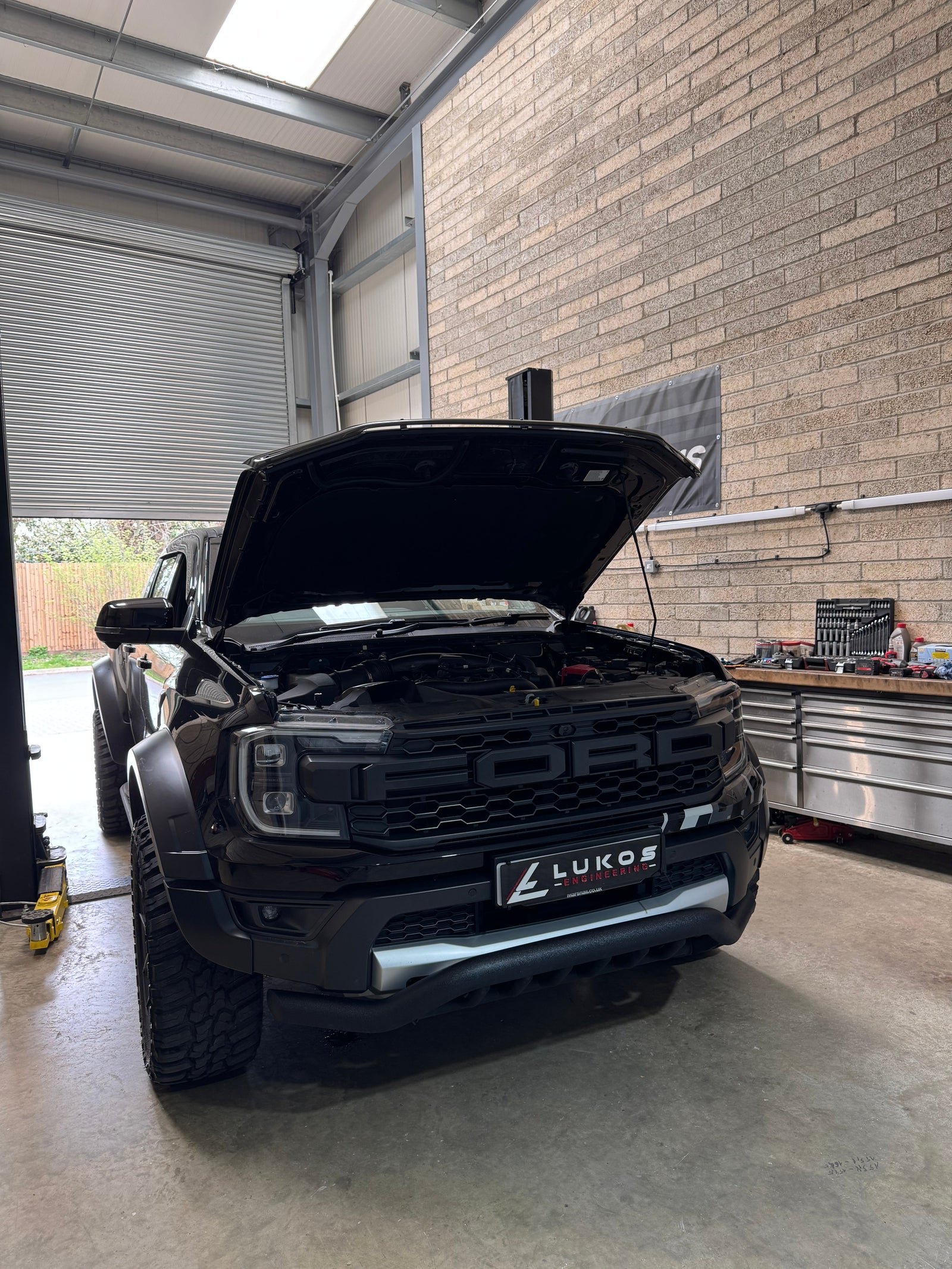

Recently, we dealt with two separate Ford Ranger Raptor 3.0L EcoBoost vehicles that presented boost-control related issues. Both vehicles were manufactured in 2023, both had similar mileage, and both were already out of warranty.
Although the symptoms may have appeared similar from the outside, the actual faults were different on each vehicle. More importantly, both issues were mechanical rather than calibration related.
One of these vehicles was taken elsewhere to what was described as a “Ford specialist”. The feedback given to the customer suggested that because the vehicle had reduced turbo restriction from upgrades, the turbo may have been spinning slightly faster than the system expected, causing the sensors or ECU to become “confused”. The customer was then advised that turbo speed limits and overboost limits could be raised, and that this was normal on a tuned vehicle. They also suggested the vehicle could be tuned on their dyno.
We strongly disagree with that approach.
When a vehicle is showing abnormal boost behaviour, the correct first step is not to raise safety limits. The correct first step is to understand why the ECU is intervening in the first place.
Two Separate Vehicles, Two Different Mechanical Faults
It is important to make this clear: these were two separate vehicles with two separate faults.
The first vehicle had an internal wastegate valve issue. The wastegate was effectively flapping internally, but it was not leaking externally in an obvious way. That made the issue harder to identify during a basic visual inspection. However, under operating conditions, the internal movement caused behaviour similar to a boost leak and resulted in inconsistent boost control.
The second vehicle had a different issue. The turbo actuator arm was sticking and not opening correctly. Because the actuator arm could not move as intended, the turbocharger could not regulate boost pressure properly. This caused an overboost condition.
In both cases, the root cause was mechanical.
The ECU can only control boost if the hardware it is commanding is physically able to respond. If a wastegate valve is not behaving correctly, or if an actuator arm is sticking and not opening, the ECU cannot magically fix that with software.
Why Raising Turbo Speed and Overboost Limits Is Not Diagnosis
One of the most concerning parts of this situation was the advice given to raise turbo speed limits and overboost limits.
That is not proper diagnosis.
If a vehicle is overboosting because the actuator arm is sticking, raising the overboost limit simply allows the fault to continue for longer before the ECU intervenes. If turbo speed limits are raised without first confirming that the turbo control hardware is functioning correctly, the turbocharger and engine may be exposed to unnecessary risk.
Factory safety strategies exist for a reason. They are there to protect the engine, turbochargers, and drivetrain when something does not behave as expected.
In these cases, the ECU safety systems did exactly what they were designed to do. They detected abnormal boost behaviour and intervened to help prevent potential engine damage.
Luckily, because our calibration retained the correct protection strategies, the vehicles were protected. Had those safety limits been raised or weakened without fixing the mechanical faults first, the outcome could have been very different.
A Dyno Does Not Fix a Mechanical Fault
A dyno is an excellent tool when used correctly. We use our in-house dyno and live data logging to develop, validate, and refine calibrations under controlled conditions.
However, putting a vehicle on a dyno does not automatically solve a mechanical issue.
If a wastegate is faulty, an actuator arm is sticking, a boost control component is not responding, or the turbo hardware is not behaving correctly, the correct process is to diagnose and repair the fault first.
Only once the mechanical system is operating correctly should calibration changes be considered.
Tuning around a mechanical fault is not the answer. Raising safety limits to stop the ECU from intervening is not the answer. Guessing based on symptoms without listening to the customer’s information is not the answer.
Proper diagnosis comes first.
Calibration vs Mechanical Faults
There is a common misconception that if a tuned vehicle develops an issue, the tune must automatically be the cause. In reality, tuning often exposes weaknesses that were already present or developing.
A wastegate fault, actuator issue, boost leak, poor fuel quality, weak ignition component, sensor issue, or mechanical problem may not always show itself clearly on a standard vehicle. Once the engine is operating under greater load, those weaknesses can become more obvious.
That does not mean the calibration caused the fault.
It means the vehicle needs to be diagnosed correctly.
In these two cases, the issues were not caused by the calibration. They were mechanical faults on two separate 2023 vehicles. The ECU responded correctly by detecting abnormal boost behaviour and triggering the necessary protection strategies.
Why Factory Safety Strategies Matter
This is exactly why we do not remove or blindly raise important safety protections as part of our tuning process.
Modern ECUs are extremely intelligent. When boost pressure exceeds what the ECU expects, or when turbocharger behaviour does not match the requested control strategy, the ECU can intervene to protect the engine.
Depending on the situation, the ECU may reduce torque request, close the throttle, limit boost, adjust ignition, reduce load, trigger fault codes, or enter a protection strategy.
That is not the vehicle being “confused”. That is the vehicle doing what it was designed to do.
If those safety strategies are removed, weakened, or raised too far, the ECU has less ability to protect the engine when a real mechanical problem occurs.
For us, a properly tuned vehicle is not just one that makes good power. It is one that still has the ability to protect itself when something goes wrong.
Could This Become a Common Fault?
Another important point is that both vehicles were manufactured in 2023 and had similar mileage. Because of this, we would not be surprised if turbo wastegate and actuator-related issues become more commonly seen on these trucks as they age and accumulate more miles.
At this stage, we are not saying every Ford Ranger Raptor 3.0L EcoBoost will suffer from these problems. However, seeing two separate vehicles from the same model year, with similar mileage, showing wastegate and actuator-related mechanical faults is certainly something worth paying attention to.
For owners, tuners, and workshops, this highlights the importance of proper logging and diagnosis before making assumptions.
If a vehicle starts showing inconsistent boost control, overboost behaviour, underboost symptoms, actuator faults, or unexpected ECU intervention, the turbocharger and wastegate control system should be inspected carefully before blaming the calibration.
As more of these vehicles get older, more real-world data will become available. For now, our advice is simple: do not ignore boost-control issues, and do not mask them by raising software limits. Diagnose the mechanical system first.
Our Approach at Lukos Engineering
At Lukos Engineering, we do not believe in masking mechanical problems with software.
We do not simply raise turbo speed limits, overboost thresholds, or safety protections just to stop a vehicle from going into protection mode. If the ECU is intervening, we want to know why.
Our process is based on data.
We check what the ECU is requesting.
We check what the engine is actually doing.
We look at boost pressure, turbo control, actuator behaviour, torque and load control, temperatures, ignition, fuel quality, and protection strategies.
Only then can an accurate conclusion be made.
This is the difference between proper calibration and guesswork.
A tuned vehicle should be powerful, responsive, and reliable, but it should also retain the safety systems required to protect the engine and turbochargers when something does not behave as expected.
Final Thoughts
These two cases are a clear reminder that professional tuning is not just about increasing power. It is about understanding the complete system.
Both vehicles were manufactured in 2023.
Both had similar mileage.
Both were out of warranty.
Both had boost-control related symptoms.
But both had different mechanical faults.
One had an internally flapping wastegate valve that behaved like a boost leak.
The other had a sticking actuator arm that caused an overboost condition.
Neither issue should be solved by blindly raising turbo speed limits or overboost limits. Those limits are there to protect the engine and turbocharger when something is not behaving as expected.
The correct approach is to diagnose the mechanical fault, repair it, and then validate the calibration with live data.
At Lukos Engineering, we tune with data, not assumptions. We keep safety strategies in place, we listen to what the vehicle is telling us, and we do not hide mechanical problems behind software changes.
